YMC 650
Vertical 3-Axis Micro Center

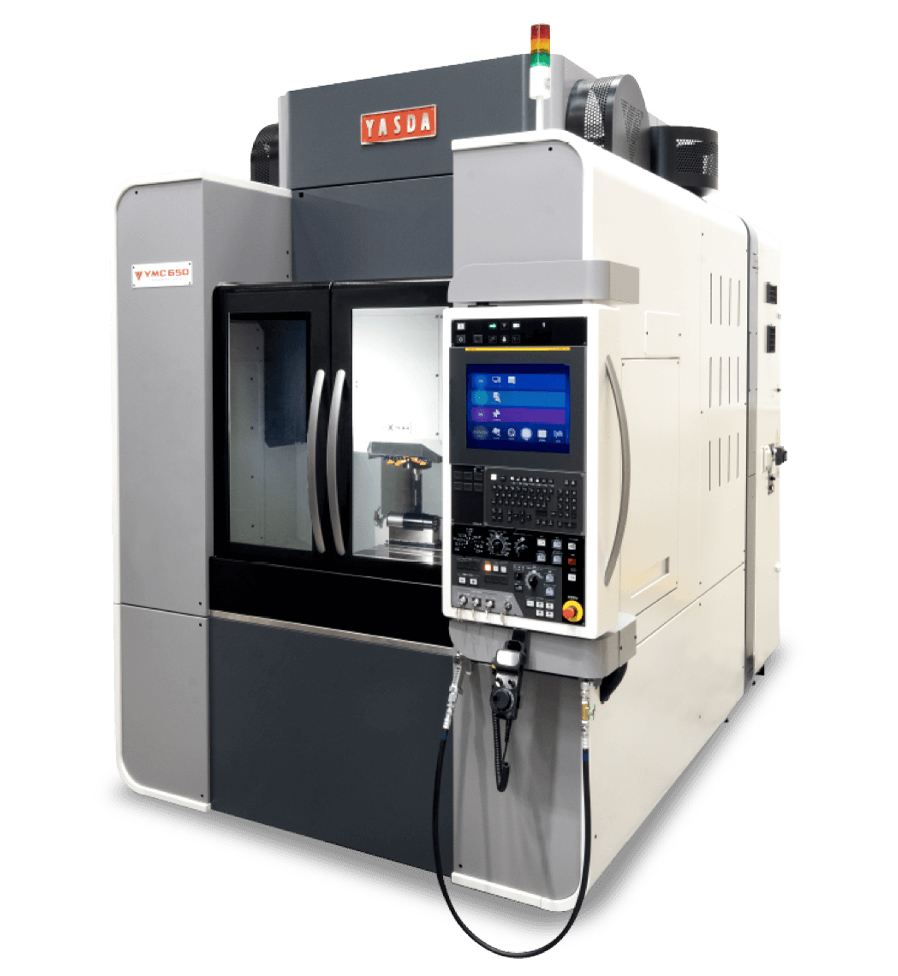

YMC 650 is a cutting edge high-end machine which allows for a wide range of high accuracy and surface quality machining.
KEY SPECIFICATIONS
Accuracy (X,Y,Z): 0.8, 0.6, 0.4μm
Travel (X,Y,Z): 600 x 500 x 280mm / 23.62 x 19.69 x 11.02inch
Loading Capacity: 200kg / 440.92lbs
APPLICATIONS
Machine Structure

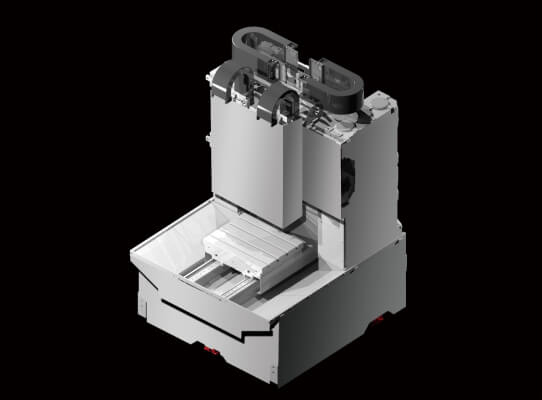

The machine is composed of high rigidity on the four-direction symmetrical H-shaped column and the stability based on a low center of gravity structure.
Guide Way
The combination of ultra precision linear guides and linear motor drives realizes an ultra high level of straightness and smoothness during axis movement.
Spindle

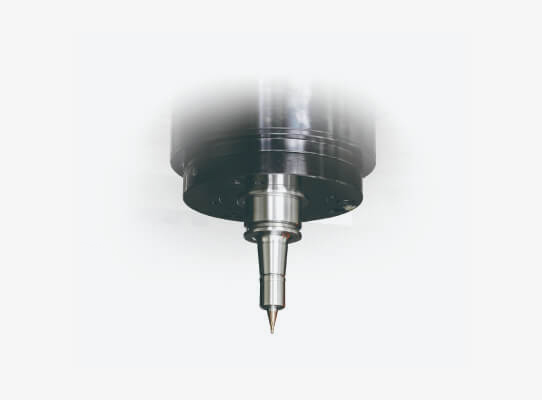

YASDA's 40,000min⁻¹ spindle realizes stable and high-precision machining for longer periods of time regardless of the tool type or rotation speed.
Thermal Distortion Stabilizing System

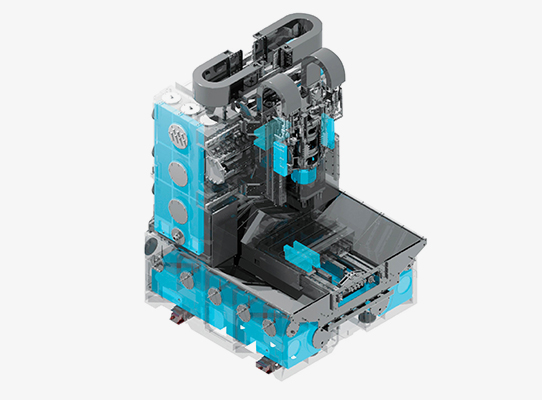

Measures against thermal displacement have been developed based on YASDA's decades long experience and technological advancements. YASDA's unique system blocks rapid thermal distortion and maintains stable high precision machining.
NC
15" touch panel display mounted with FANUC iHMI interface and YASDA's User interface "OpeNe Version 2.0" provides intuitive operation and high functionality. The "OpeNe version 2.0" provides the operator with innovative solutions and complete details of the machine.
ATC

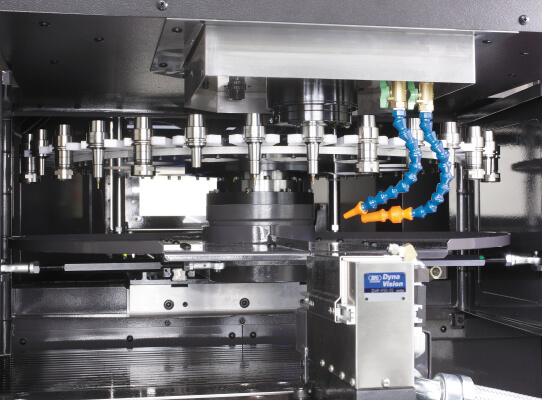

YMC 650 is equipped a automatic tool changer (ATC) with 32 tools standard. The number of tools can be expanded up to 90 tools. This compact 90-tools ATC needs the same installation space like the standard 32-stools ATC.
SPECIFICATIONS
| Specification | YMC 650 | |
|---|---|---|
| Accuracy [ISO230-2 (2014)] | 0.8, 0.6, 0.4μm | |
| Travel (X, Y, Z-axis) | 600 x 500 x 280mm | 23.62 x 19.69 x 11.02inch |
| Spindle RPM | 40,000min⁻¹ [35,000min⁻¹ (op)] | |
| Spindle Taper | HSK-E32 [HSK-E40 (op)] | |
| Table Working Size | 700 x 550mm | 27.56 x 21.65inch |
| Maximum Loading Capacity | 200kg | 440.92lbs |
| Rapid Traverse | Max. 20,000mm/min | Max. 787.40inch/min |
| ATC Capacity | 32 tools [Max. 90 tools (op)] | |
| Axis | 3 | |
| Type | Vertical | |
