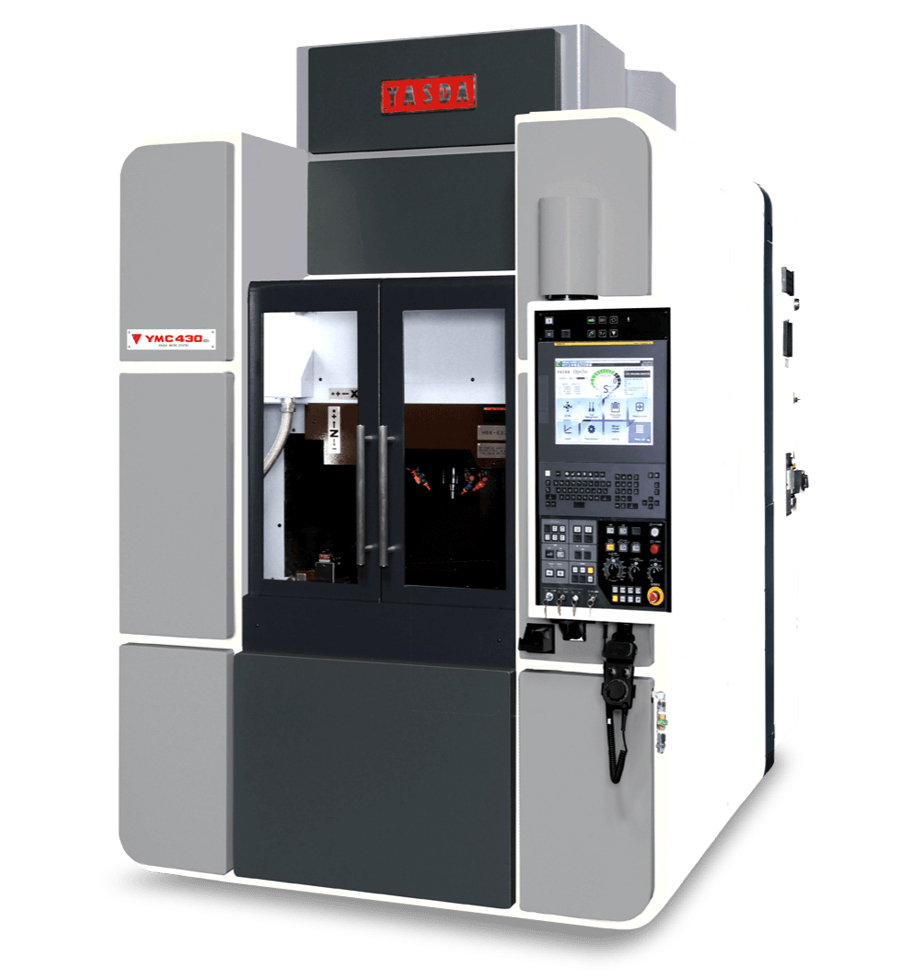

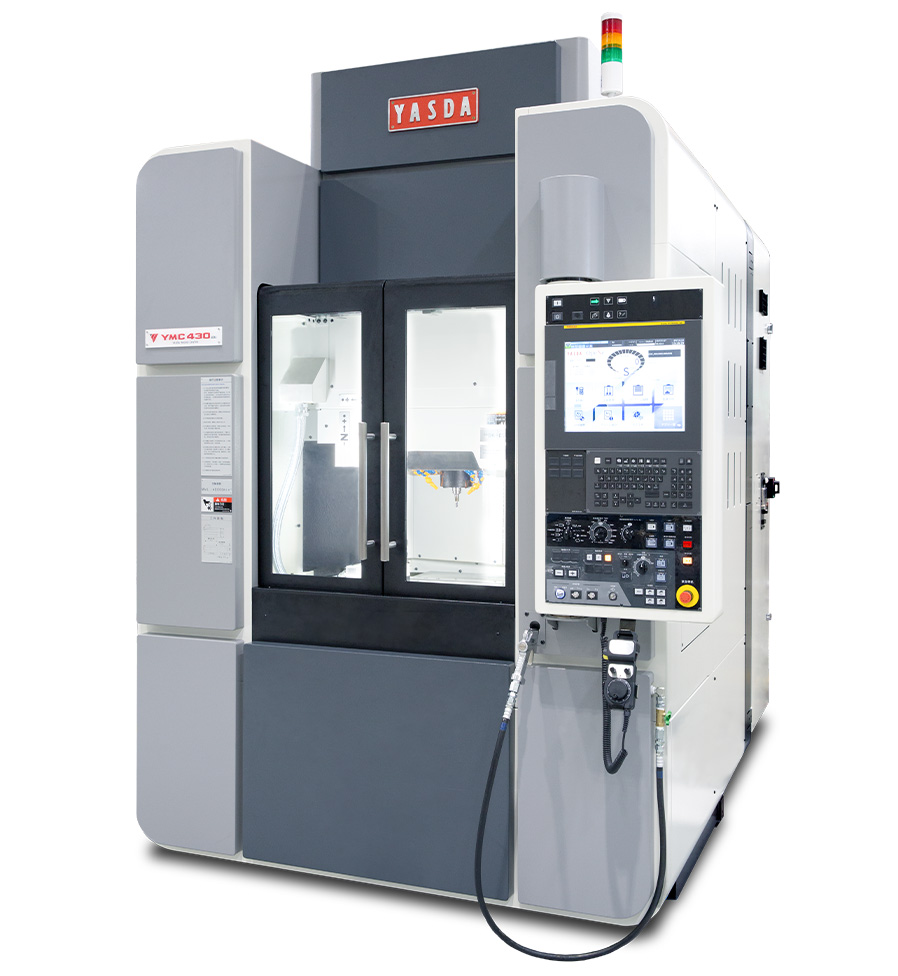

YMC 430
Vertical 3-Axis Micro Center
YMC 430 is a state-of-the-art high-end machine that constantly meets the increasing demand for ultra-high precision and high quality in the micro machining fields.
KEY SPECIFICATIONS
Accuracy (X,Y,Z): 0.5, 0.6, 0.4μm
Travel (X,Y,Z): 420 x 300 x 250mm / 16.54 x 11.81 x 9.84inch
Loading Capacity: 100kg / 220.46lbs
APPLICATIONS
Machine Structure

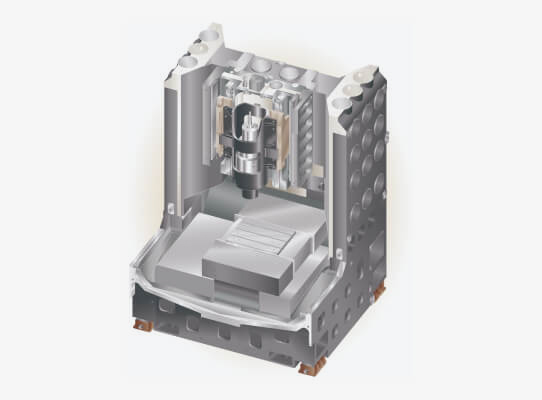

YASDA's original high precision X-Y table is designed and developed to pursue "infinitely square" and "infinite straightness". The unique structure enables the achievement of absolutely low vibration and high accuracy.
Guide Way
The combination of ultra precision linear guides and linear motor drives realizes an ultra high level of straightness and smoothness during axis movement.
Spindle

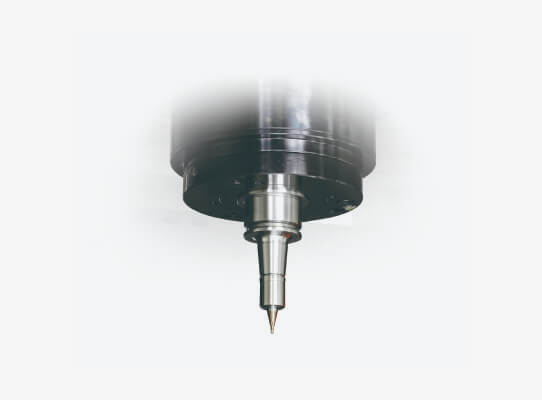

YASDA's 40,000min⁻¹ spindle realizes stable and high-precision machining for longer periods of time regardless of the tool type or rotation speed.
Thermal Distortion Stabilizing System

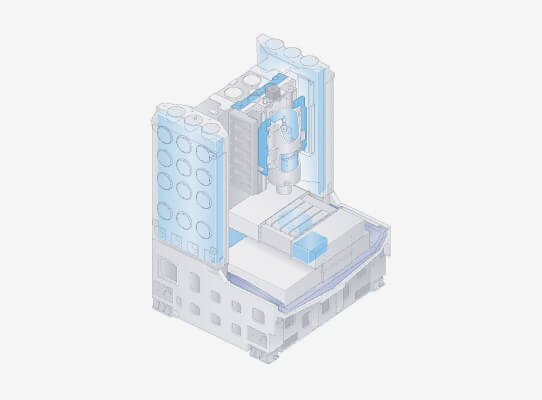

Measures against thermal displacement have been developed based on YASDA's decades long experience and technological advancements. YASDA's unique system blocks rapid thermal distortion and maintains stable high precision machining.
NC
15" touch panel display mounted with FANUC iHMI interface and YASDA's User interface "OpeNe Version 2.0" provides intuitive operation and high functionality. The "OpeNe version 2.0" provides the operator with innovative solutions and complete details of the machine.
ATC

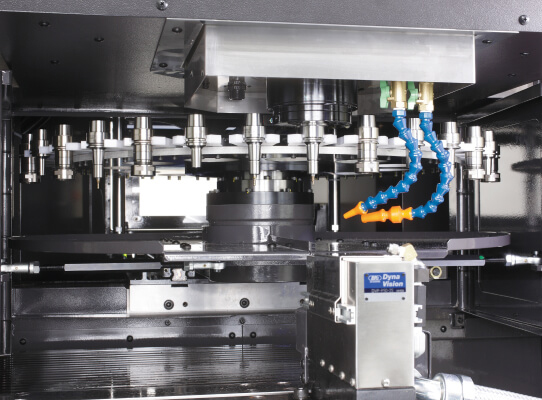

YMC 430 is equipped a automatic tool changer (ATC) with 32 tools standard. The number of tools can be expanded up to 90 tools. This compact 90-tools ATC needs the same installation space like the standard 32-stools ATC.
SPECIFICATIONS
| Specification | YMC 430 | |
|---|---|---|
| Accuracy [ISO230-2 (2014)] | 0.5, 0.6, 0.4μm | |
| Travel (X, Y, Z-axis) | 420 x 300 x 250mm | 16.54 x 11.81 x 9.84inch |
| Spindle RPM | 40,000min⁻¹ [80,000min⁻¹ (op)] | |
| Spindle Taper | HSK-E32 [HSK-E25 (op)] | |
| Table Working Size | 600 x 350mm | 23.62 x 13.78inch |
| Maximum Loading Capacity | 100kg | 220.46lbs |
| Rapid Traverse | Max. 20,000mm/min | Max. 787.40inch/min |
| ATC Capacity | 32 tools [Max. 90 tools (op)] | |
| Axis | 3 | |
| Type | Vertical | |
