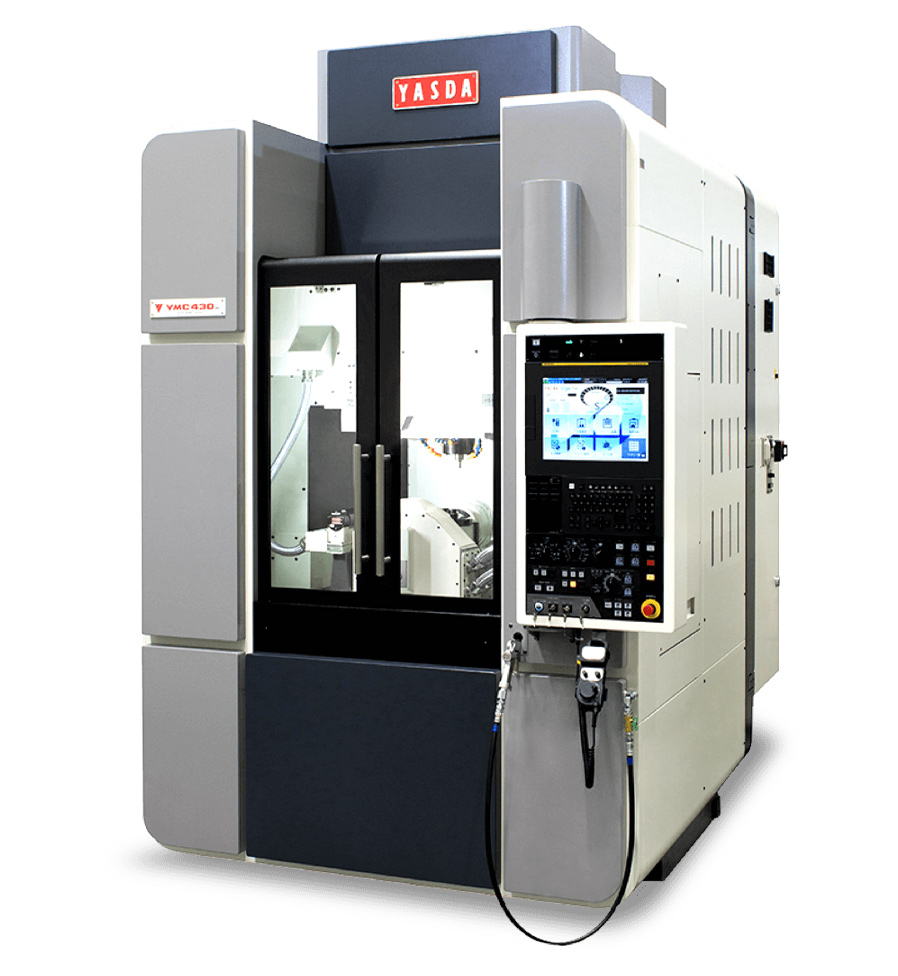

YMC 430+RT10
Vertical 5-Axis Micro Center
YMC 430+RT10 is the high-end machine that meets the constantly increasing demand for ultra-high precision and high quality of the simultaneous 5-axis micro machining.
KEY SPECIFICATIONS
Accuracy (X,Y,Z): 0.5, 0.6, 0.4μm
Travel (X,Y,Z): 420 x 300 x 250mm / 16.54 x 11.81 x 9.84inch
Loading Capacity: 15kg / 33.07lbs
APPLICATIONS

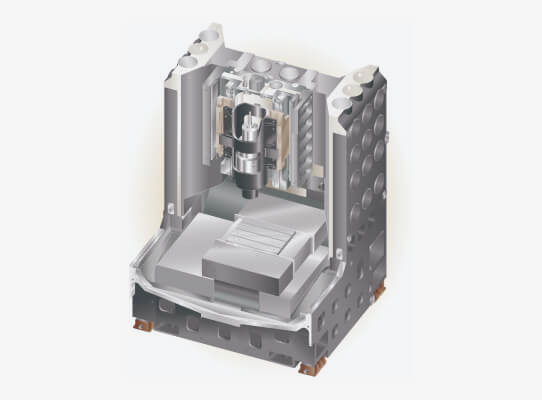

Machine Structure
YASDA's original high precision X-Y table is designed and developed to pursue "infinitely square" and "infinite straightness". The unique structure enables the achievement of absolutely low vibration and high accuracy.

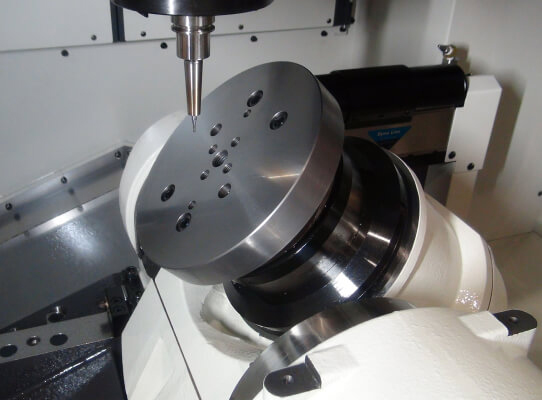

Rotary Table
YASDA's in house built high-precision rotary table equipped with a DD(Direct Drive) motor enables simultaneous 5-axis machining which requires high responsiveness. As a chucking system, System 3R macro chuck or EROWA ITS-100 chuck is available.

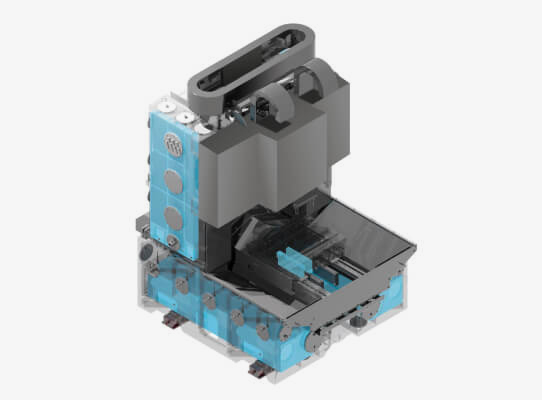

Thermal Distortion Stabilizing System
Measures against thermal displacement have been developed based on YASDA's decades long experience and technological advancements. YASDA's unique system blocks rapid thermal distortion and maintains stable high precision machining.
NC
15" touch panel display mounted with FANUC iHMI interface and YASDA's User interface "OpeNe Version 2.0" provides intuitive operation and high functionality. The "OpeNe version 2.0" provides the operator with innovative solutions and complete details of the machine.

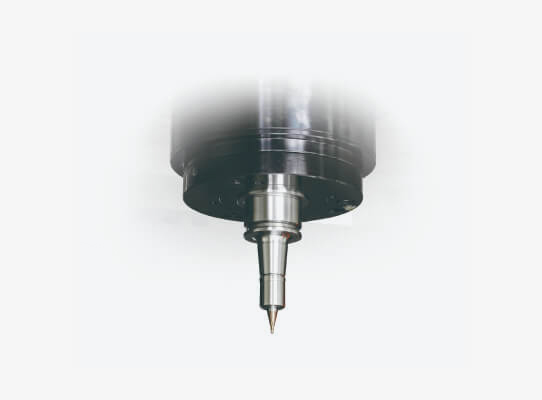

Spindle
YASDA's 40,000min⁻¹ spindle realizes stable and high-precision machining for longer periods of time regardless of the tool type or rotation speed.

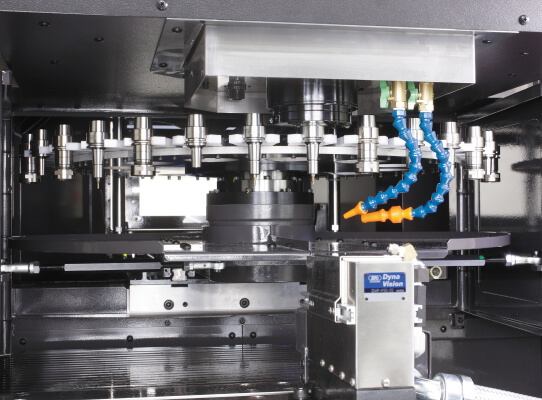

ATC
YMC 430 is equipped a automatic tool changer (ATC) with 32 tools standard. The number of tools can be expanded up to 90 tools. This compact 90-tools ATC needs the same installation space like the standard 32-stools ATC.
Guide Way
The combination of ultra precision linear guides and linear motor drives realizes an ultra high level of straightness and smoothness during axis movement.
SPECIFICATIONS
| Specification | YMC 430+RT10 | |
|---|---|---|
| Accuracy [ISO230-2 (2014)] | 0.5, 0.6, 0.4μm | |
| Travel (X, Y, Z-axis) | 420 x 300 x 250mm | 16.54 x 11.81 x 9.84inch |
| Travel (B) | -10～+100deg | |
| Travel (C) | 360deg (Continuous) | |
| Spindle RPM | 40,000min⁻¹ [80,000min⁻¹ (op)] | |
| Spindle Taper | HSK-E32 [HSK-E25 (op)] | |
| Work Dimension | 250 x 170mm (limitation) | 9.84 x 6.69inch (limitation) |
| Maximum Loading Capacity | 15kg | 33.07lbs |
| Rapid Traverse (X,Y,Z) | Max. 20,000mm/min | Max. 787.40inch/min |
| Table Tilting Speed (B) | 100min⁻¹ | |
| Table Rotation Speed (C) | 200min⁻¹ | |
| ATC Capacity | 32 tools [Max. 90 tools (op)] | |
| Axis | 5 | |
| Type | Vertical | |
