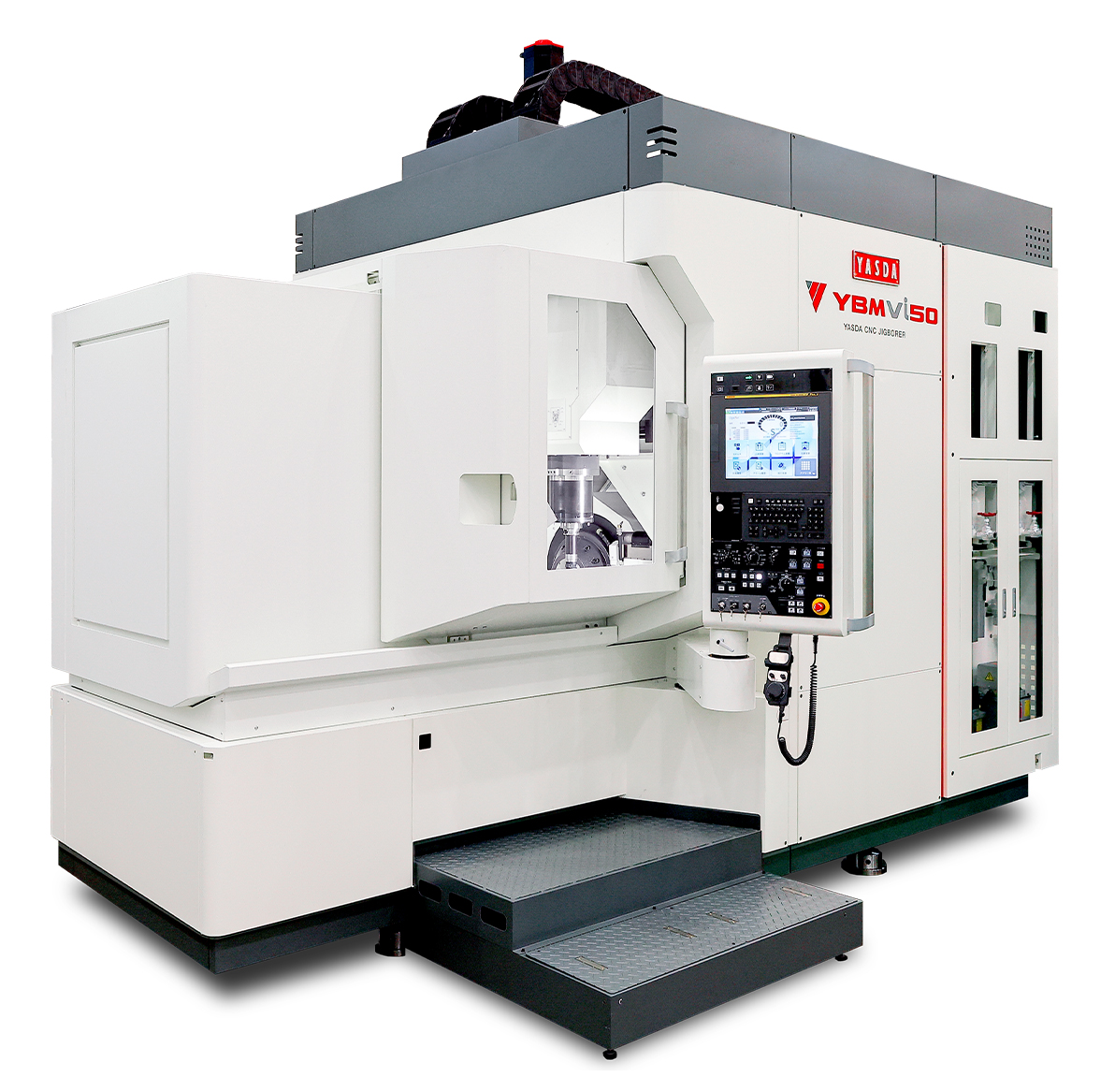

YBM Vi50
VERTICAL 5-AXIS CNC JIG BORER
A reliable solution for 5-axis die and mold making. YBM Vi50 is equipped with high rigidity and the accurate rotary B/C axis realizes excellent responsiveness, high-precision, and high surface quality.
KEY SPECIFICATIONS
Accuracy (X,Y,Z): 1.5, 3.4, 1.7μm
Travel (X,Y,Z): 720 x 1,100 x 500mm / 28.35 x 43.31 x 19.69inch
Loading Capacity: 500kg / 1,102.31lbs
APPLICATIONS

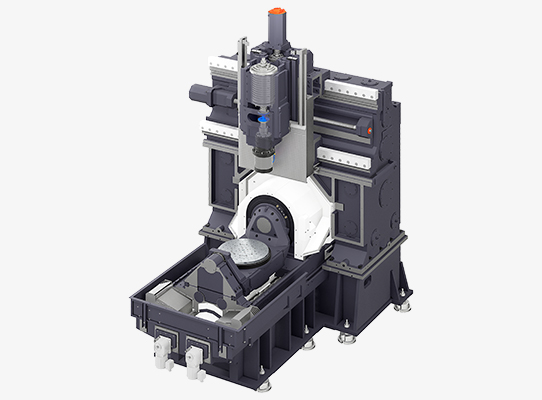

Machine Structure
A machine bed made of high-quality cast iron supports the thermally symmetrical double column: the structure integrating the column and crossbeam as one component. This makes the machine absolutely rigid and outstandingly stable.

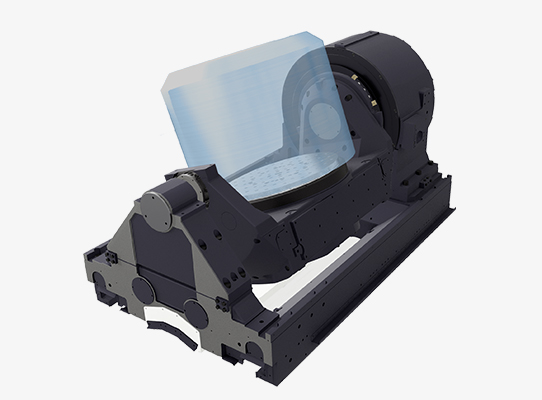

Rotary Table
YASDA's in house build DD (Direct Drive) motors are implemented to allow high performance tracking of complex commands, achieving smooth and quiet motion performance. The workpiece weight is automatically estimated and automatic compensation maintains machining accuracy at every tilt angel.

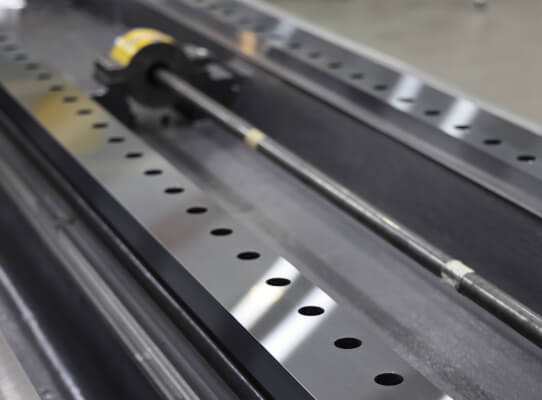

Guide Way
YASDA's traditional hybrid box guide ways: The box guideway is fastened to a hand scraped mounting surface in order to minimize Roll, Pitch and Yaw error of each guideway and thus to achieve high straightness and geometric accuracy.

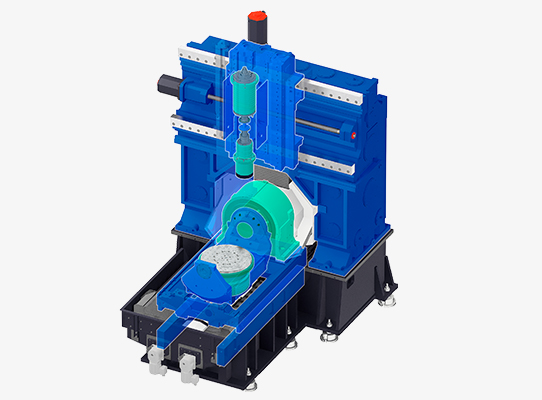

Thermal Distortion Stabilizing System
Measures against thermal displacement have been developed based on YASDA's decades long experience and technological advancements. YASDA's unique system blocks rapid thermal distortion and maintains stable high precision machining.
NC
15" touch panel display mounted with FANUC iHMI interface and YASDA's User interface "OpeNe Version 2.0" provides intuitive operation and high functionality. The "OpeNe version 2.0" provides the operator with innovative solutions and complete details of the machine.

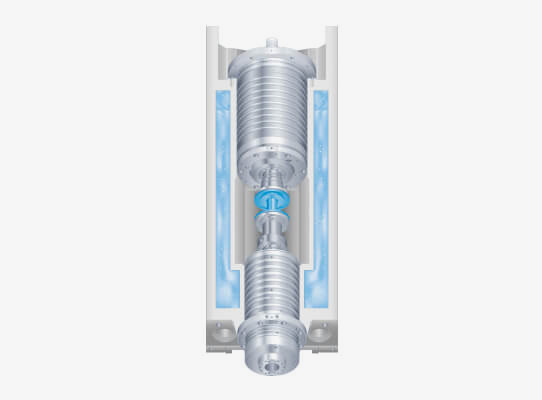

Spindle
The preload self-adjusting spindle developed by YASDA realizes a high degree of accuracy throughout the whole speed range.
SPECIFICATIONS
| Specification | YBM Vi50 | |
|---|---|---|
| Accuracy [ISO230-2 (2014)] | 1.5, 3.4, 1.7μm | |
| Travel (X, Y, Z-axis) | 720 x 1,100 x 500mm | 28.35 x 43.31 x 19.69inch |
| Maximum Loading Capacity | 500kg | 1,102.31lbs |
| Axis | 5 | |
| Type | Vertical | |
