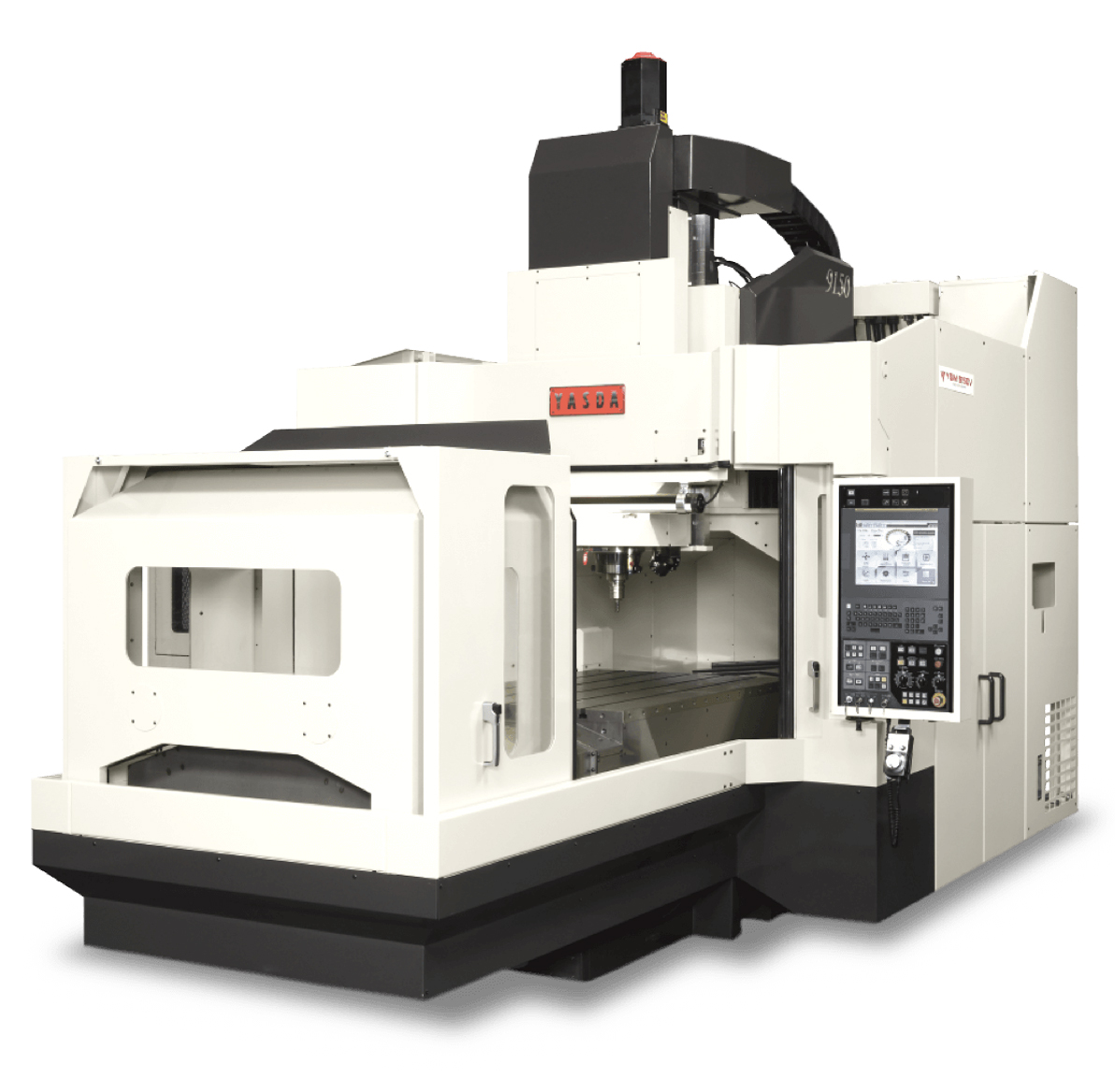

YBM 9150V
Vertical 3-Axis CNC Jig Borer
YBM 9150V allows for a wide range of workpieces. The machine is capable of supporting various machining. Ranging from 3-dimensional, large molds to precise plate machining.
KEY SPECIFICATIONS
Accuracy (X,Y,Z): 2.0, 1.3, 1.3μm
Travel (X,Y,Z): 1,500 x 900 x 450mm / 59.06 x 35.43 x 17.72inch
Loading Capacity: 3,000kg / 6,613.87lbs

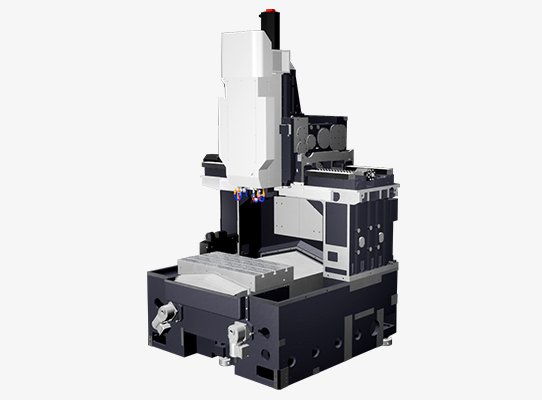

Machine Structure
A machine bed made of high-quality cast iron supports the thermally symmetrical double column: the structure integrates the column and crossbeam as one component. This makes the machine absolutely rigid and outstandingly stable.

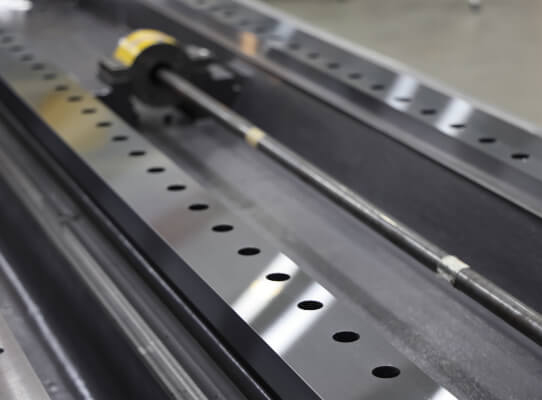

Guide Way
YASDA's traditional hybrid box guide ways: The box guideway is fastened to a hand scraped mounting surface in order to minimize Roll, Pitch and Yaw error of each guideway and thus to achieve high straightness and geometric accuracy.

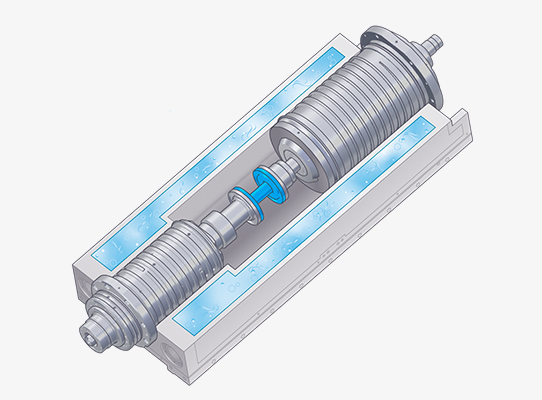

Spindle
The preload self-adjusting spindle developed by YASDA realizes a high degree of accuracy through whole speed range.

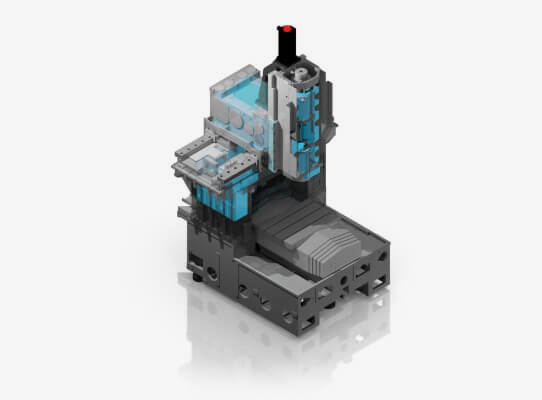

Thermal Distortion Stabilizing System
Measures against thermal displacement have been developed based on YASDA's decades long experience and technological advancements. YASDA's unique system blocks rapid thermal distortion and maintains stable high precision machining.
NC
15" touch panel display mounted with FANUC iHMI interface and YASDA's User interface "OpeNe Version 2.0" provides intuitive operation and high functionality. The "OpeNe version 2.0" provides the operator with innovative solutions and complete details of the machine.

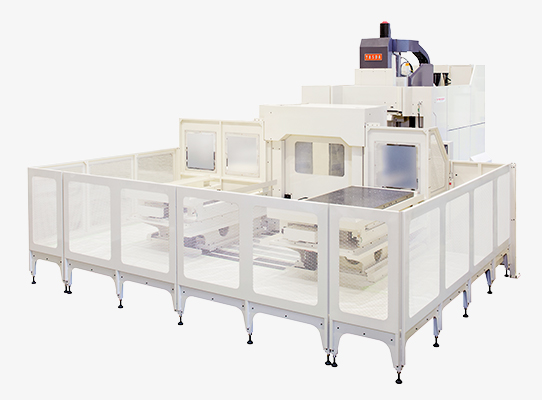

ATC/APC
ATC: YBM 9150V is equipped with an automatic tool changer (ATC) with 60 tools standard. An additional magazine can be added to expand the number of tools up to 100.
APC: Automatic pallet changer (APC) is also available as an option.
SPECIFICATIONS
| Specification | YBM 9150V | |
|---|---|---|
| Accuracy [ISO230-2 (2014)] | 2.0, 1.3, 1.3μm | |
| Travel (X, Y, Z-axis) | 1500 x 900 x 450mm | 59.06 x 35.43 x 17.72inch |
| Spindle RPM | 24,000min⁻¹ [10,000min⁻¹ (op)] | |
| Spindle Taper | BBT40 [HSK-A63 (op)] | |
| Table Working Size | 1,500 x 900mm | 59.06 x 35.43inch |
| Maximum Loading Capacity | 3,000kg | 6,613.87lbs |
| Rapid Traverse | Max. 20,000mm/min | Max. 787.40inch/min |
| ATC Capacity | 60 tools [ Max. 100 tools (op) ] | |
| Axis | 3 | |
| Type | Vertical | |
