YBM 15T
Horizontal 4-Axis PRECISION CENTER

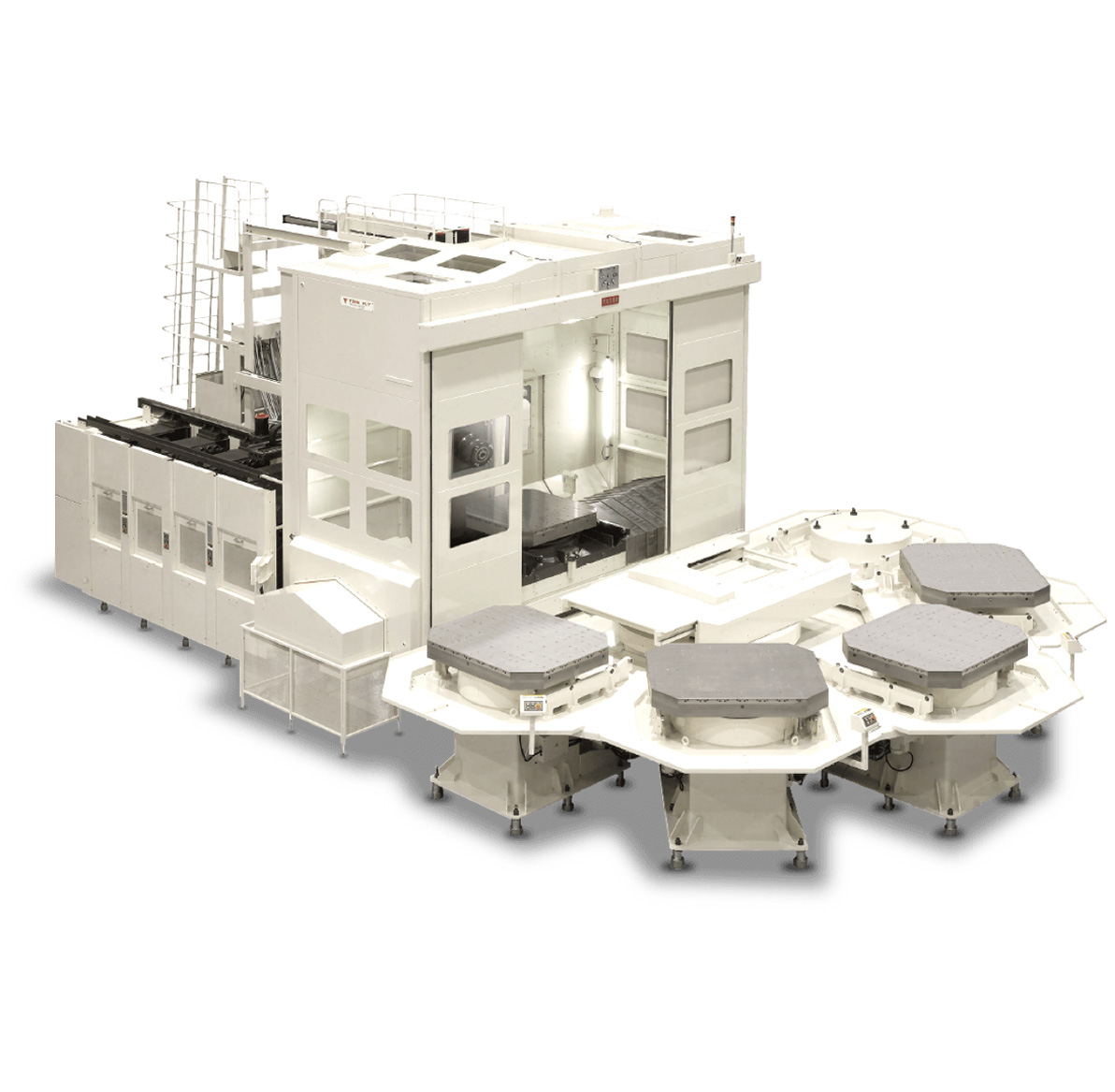

YBM 15T is a column feed, large size horizontal machining center with hybrid-drive system and Quill type spindle.
KEY SPECIFICATIONS
Accuracy (X,Y,Z): 4.3, 3.7, 4.0μm
Travel (X,Y,Z): 2,100 x 1,800 x 1,500mm / 82.67 x 70.86 x 59.05inch
Loading Capacity: 12,000kg / 26,455.47lbs
APPLICATIONS
Machine Structure

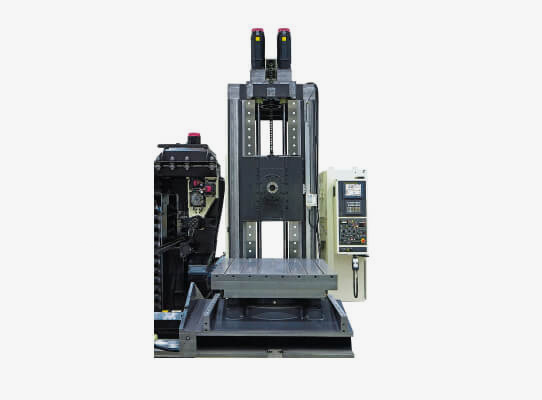

Machine bed is highly rigid solid steel form with the H-shape configuration. The double column reinforced with evenly distributed ribs form is made of massive cast iron which stays extremely rigid with superior thermal stability for constant high precision machining.
Box Guide Way

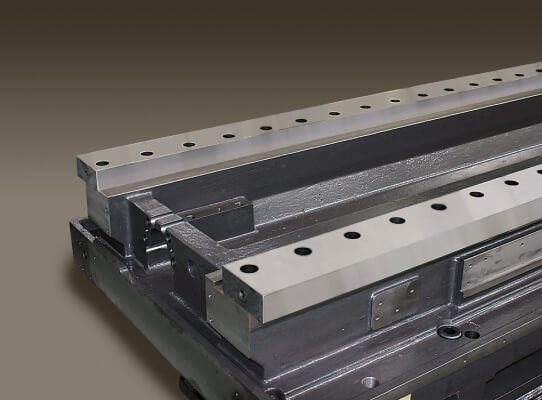

YASDA's traditional hybrid box guide ways driven by Twin Ball screws. The box guideway is fastened to a hand scraped mounting surface in order to minimize Roll, Pitch and Yaw error of each guideways and thus to achieve high straightness and geometric accuracy.
Thermal Distortion Stabilizing System

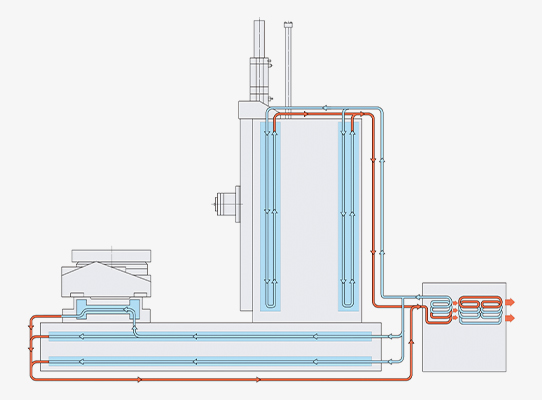

Measures against thermal displacement have been developed based on YASDA's decades long experience and technological advancements. YASDA's unique system blocks rapid thermal distortion and maintains stable high precision machining.
NC
15" touch panel display mounted with FANUC iHMI interface and YASDA's User interface "OpeNe Version 2.0" provides intuitive operation and high functionality. The "OpeNe version 2.0" provides the operator with innovative solutions and complete details of the machine.
ATC/APC

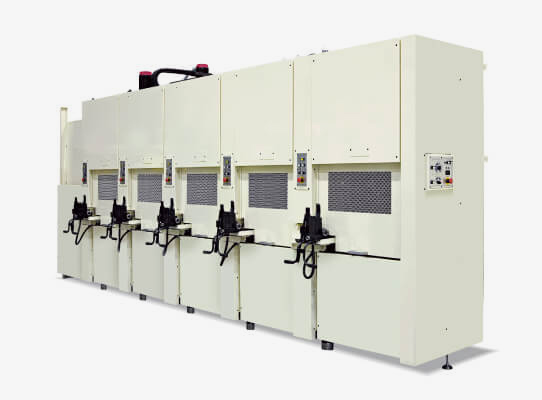

ATC: YBM15T is equipped with an automatic tool changer (ATC) with 60 tools standard. With additional magazines the number of tools can be expanded up to 450 tools.
APC: Automatic pallet changer (APC) is standard. Pre Load Stand (PLS) is also available as option.
SPECIFICATIONS
| Specification | YBM 15T | |
|---|---|---|
| Accuracy [ISO230-2 (2014)] | 4.3, 3.7, 4.0μm | |
| Travel (X, Y, Z-axis) | 2,100 x 1,800 x 1,500mm | 82.67 x 70.86 x 59.05inch |
| Min. Table Indexing Angle (B) | 0.0001 deg. | |
| Pallet Working Size | 1,500 x 1,500mm | 59.06 x 59.06inch |
| Spindle RPM | 2,800min⁻¹ quill type [6000 min⁻¹ / 10,000min⁻¹ SA type (op)] | |
| Spindle Taper | BBT50 [HSK-A100 (op)] | |
| Max. Workpiece | Dia. 2,050 x 2,000mm | Dia. 80.71 x 78.74inch |
| Maximum Loading Capacity | 12,000kg | 26,455.47lbs |
| Rapid Traverse | Max. 20,000mm/min (X), 24,000mm/min (Y,Z), 8,000mm/min (W) | Max. 787.40inch/min (X), 944.88inch/min (Y,Z), 314.96inch/min (W) |
| Table Rotation Speed (B) | Max. 3min⁻¹ | |
| ATC Capacity | 60 tools [Max. 450 tools (op)] | |
| Axis | 4 | |
| Type | Horizontal | |
