YBM 10T-100TT
Horizontal 5-Axis PRECISION CENTER

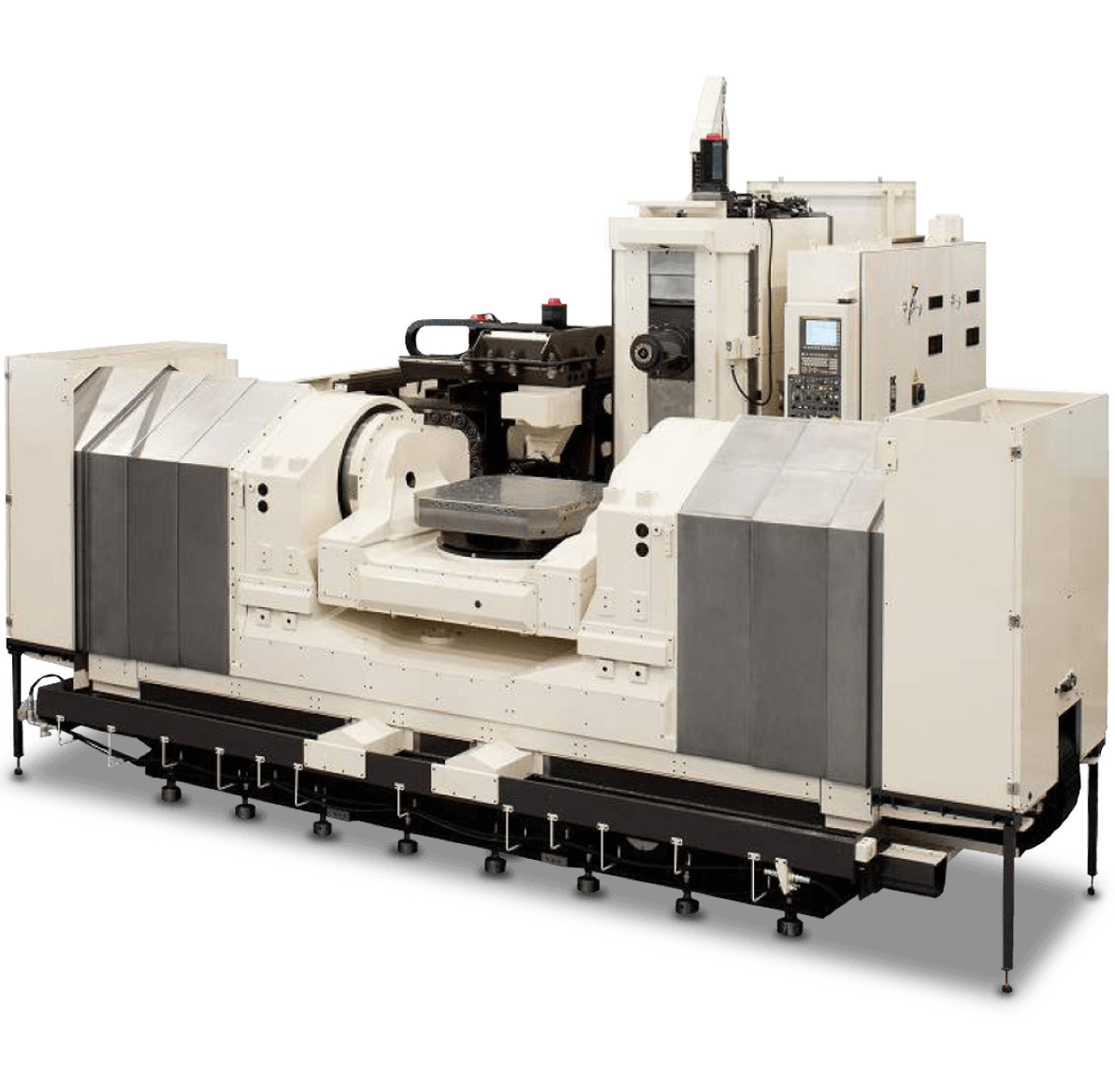

YBM 10T-100TT is a horizontal 5-axis machining center with a symmetric trunnion table and a highly rigid 630x630mm table 1,000x1,000mm table.
KEY SPECIFICATIONS
Accuracy (X,Y,Z): 3.0, 2.7, 2.6μm
Travel (X,Y,Z): 1,500 x 1,200 x 1,100mm / 59.05 x 47.24 x 43.30inch
Loading Capacity: 2,000kg / 4,409.24lbs
APPLICATIONS
Machine Structure

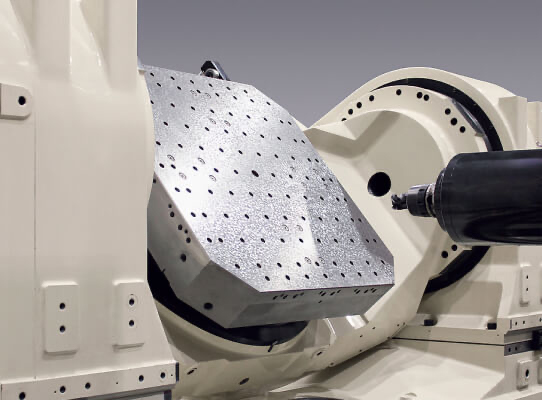

YASDA developed an original mechanism that enables high precision and high efficiency machining. It can effortlessly control against disturbances and has controllability even in reverse motion (A & B axis symmetric trunnion table)
Box Guide Way

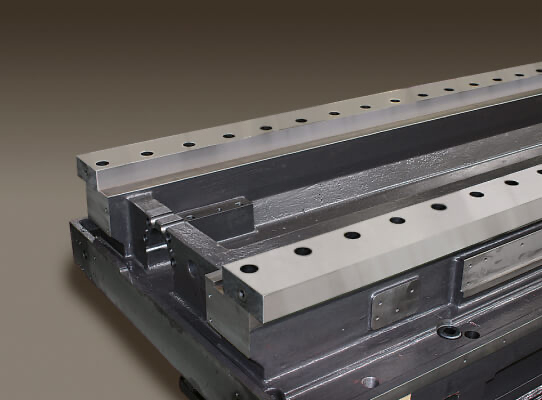

YASDA's traditional hybrid box guide ways driven by Twin Ball screws. The box guideway is fastened to a hand scraped mounting surface in order to minimize Roll, Pitch and Yaw error of each guideways and thus to achieve high straightness and geometric accuracy.
Spindle

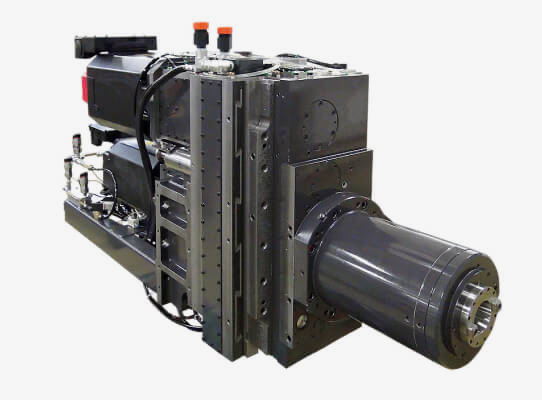

Two motor driven torque tandem control Spindle: Two motors, one for high speed and the other for low speed drive spindle. In case the torque from the low speed motor is not enough for heavy duty cutting, the spindle can be tandem (adding on high speed motor) to obtain higher torque.
Thermal Distortion Stabilizing System

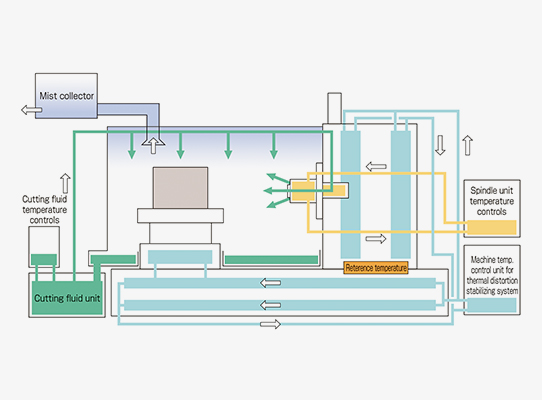

Measures against thermal displacement have been developed based on YASDA's decades long experience and technological advancements. YASDA's unique system blocks rapid thermal distortion and maintains stable high precision machining.
NC
15" touch panel display mounted with FANUC iHMI interface and YASDA's User interface "OpeNe Version 2.0" provides intuitive operation and high functionality. The "OpeNe version 2.0" provides the operator with innovative solutions and complete details of the machine.
ATC/APC
ATC: YBM10T-100TT is equipped with an automatic tool changer (ATC) with 60 tools standard. With additional magazines the number of tools can be expanded up to 450 tools.

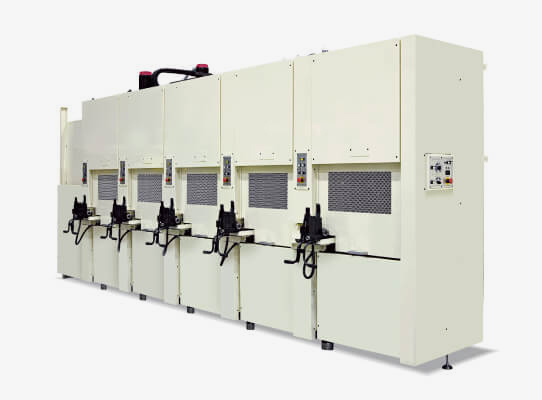

APC: Automatic pallet changer (APC) is standard. Pre Load Stand (PLS) is also available as option.
SPECIFICATIONS
| Specification | YBM 10T-100TT | |
|---|---|---|
| Accuracy [ISO230-2 (2014)] | 3.0, 2.7, 2.6μm | |
| Travel (X, Y, Z-axis) | 1,500 x 1,200 x 1,100mm | 59.05 x 47.24 x 43.30inch |
| Travel (A) | +5deg～-95deg | |
| Travel (B) | 360deg (Continuous) | |
| Pallet Working Size | 1,000 x 1,000mm | 39.37 x 39.37inch |
| Spindle RPM | 10,000min⁻¹ [15,000min⁻¹ / 8,000min⁻¹ (Torqu tandem) (op)] | |
| Spindle Taper | BBT50 [HSK-A100 (op)] | |
| Max. Workpiece | Dia. 1,350 x 595mm | Dia. 53.15 x 23.43inch |
| Maximum Loading Capacity | 2,000kg | 4,409.24lbs |
| Rapid Traverse | Max. 16,000mm/min (X,Y,Z) | Max. 629.92inch/min (X,Y,Z) |
| Table Tilting Speed | Max. 2min⁻¹ | |
| Table Rotation Speed | Max. 6min⁻¹ | |
| ATC Capacity | 60 tools [Max. 450 tools (op)] | |
| Axis | 5 | |
| Type | Horizontal | |
