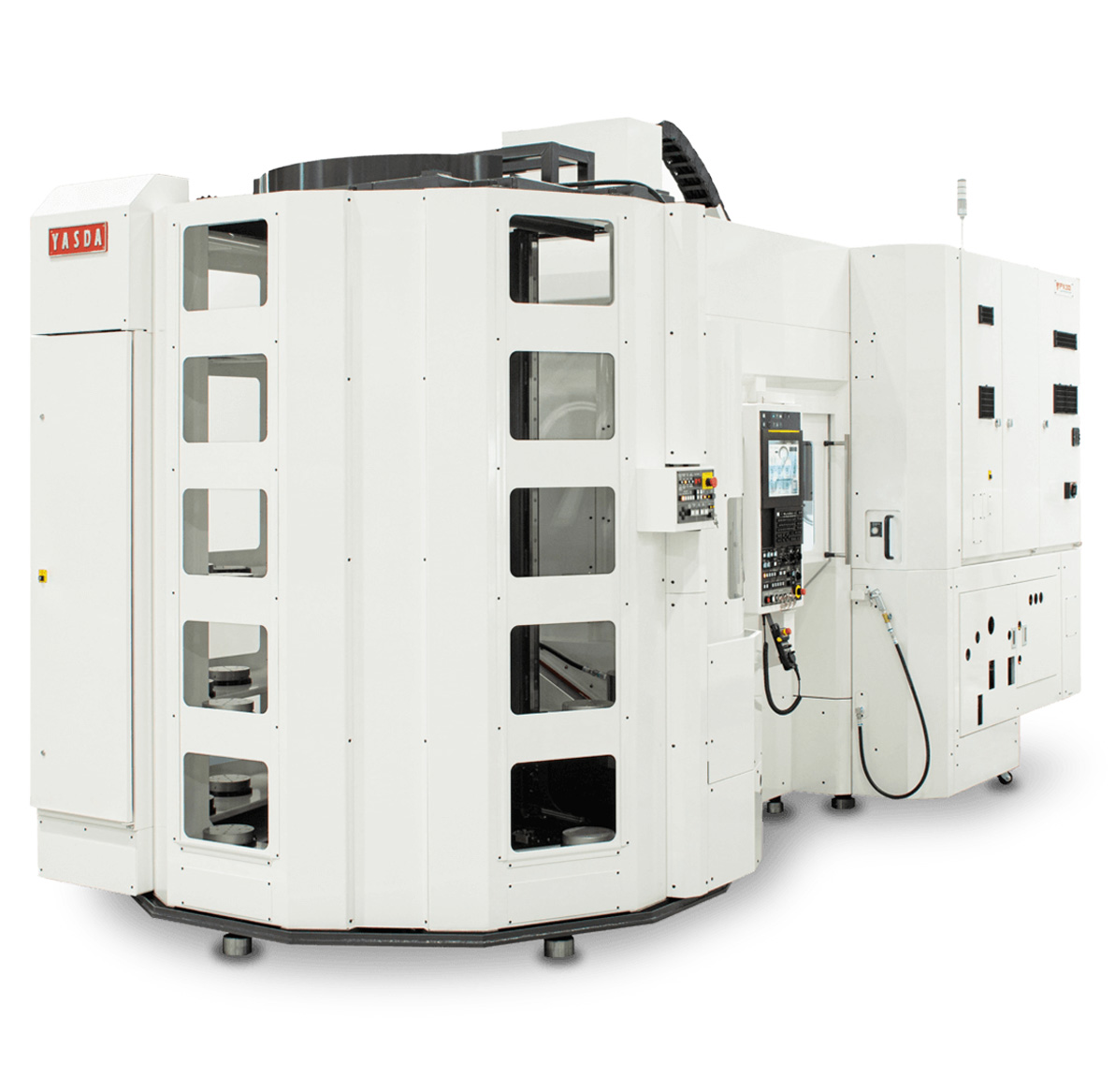

PX30i
VERTICAL 5-AXIS PRECISION CENTER
PX30i is capable of high volume and high mix production. A 5 axis machine inheriting the DNA of the YBM series.
KEY SPECIFICATIONS
Accuracy (X,Y,Z): 2.3, 1.4, 2.1μm
Travel (X,Y,Z): 680 x 400 x 500mm / 26.77 x 15.74 x 19.68inch
Loading Capacity: 80kg / 176.37lbs
APPLICATIONS

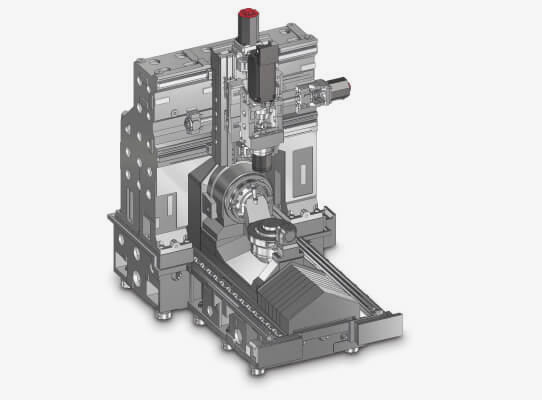

Machine Structure
The highly rigid integrated portal structure dominates the field of high precision and heavy cutting.

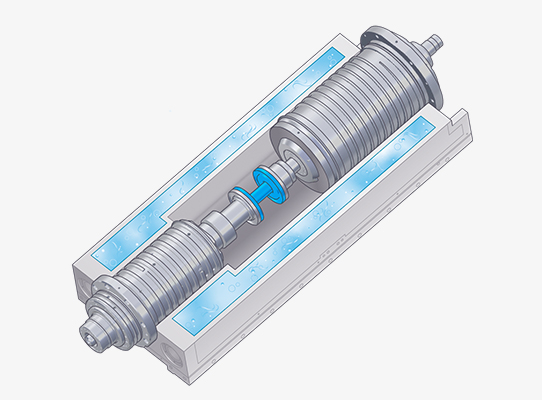

Spindle
The preload self-adjusting spindle developed by YASDA realizes a high degree of accuracy throughout the whole speed range.
NC
15" touch panel display mounted with FANUC iHMI interface and YASDA's User interface "OpeNe Version 2.0" provides intuitive operation and high functionality. The "OpeNe version 2.0" provides the operator with innovative solutions and complete details of the machine.

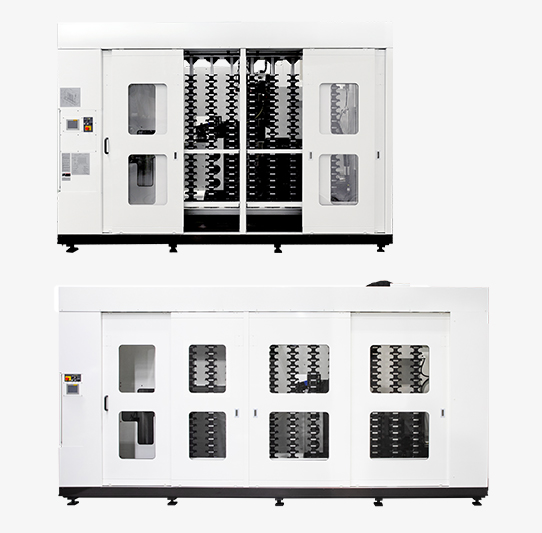

ATC/APC
ATC: PX30i is equipped with an automatic tool changer (ATC) with 323 tools standard. With an additional magazine the number of tools can be expanded up to 512 tools.
PLS:33 Pre Load Stand (33 PLS) is also as standard.
SPECIFICATIONS
| Specification | PX30i | |
|---|---|---|
| Accuracy [ISO230-2 (2014)] | 2.3, 1.4, 2.1μm | |
| Travel (X, Y, Z-axis) | 680 x 400 x 500mm | 26.77 x 15.74 x 19.68inch |
| Travel (B) | -125～+65deg | |
| Travel (C) | 360deg (Continuous) | |
| Pallet Working Size | Dia. 185mm | Dia. 7.28inch |
| Spindle RPM | 20,000min⁻¹ | |
| Spindle Taper | BBT40 [HSK-A63 (op)] | |
| Max. Workpiece | Dia. 400 x 315mm (limitation) | Dia. 15.75 x 12.40inch (limitation) |
| Maximum Loading Capacity | 80kg | 176.37lbs |
| Rapid Traverse (X,Y,Z) | Max. 60,000mm/min | Max. 2,362.20inch/min |
| Table Tilting Speed (B) | Max. 75min⁻¹ | |
| Table Rotation Speed (C) | Max. 125min⁻¹ | |
| ATC Capacity | Max. 323 tools [Max. 512 tools (op)] | |
| Axis | 5 | |
| Type | Vertical | |
