5-Axis Precision Centers

H40i

To download your requested file, please fill out the form below.

Email*
Name*
Title
Company*
Phone*
Address
City
State*
Postal Code
Country


Travel X-axis travel (Longitudinal movement of table) 875mm
Y-axis travel (Cross movement of spindle head) 740mm
Z-axis travel (Vertical movement of spindle head) 685mm
B-axis travel (Table rotation) 230°(-185°〜+45°))
A-axis travel (Table rotation) 360°
Table Table working surface 400x400mm
Table loading capacity 200kg(200Nm)
Spindle The highest revolving speed 20000min-1
Spindle taper hole 7/24 taper,No.40(BT40)
Direct Drive Motor A-axis 100 rpm/min
B-axis 75 rpm/min
Automatic tool changer Tool storage capacity 60 tools[120 and 180 and 240]
APC/PLS The number of palettes 2nd page / [24th page ]
NC equipment FANUC 31i-MODEL B5

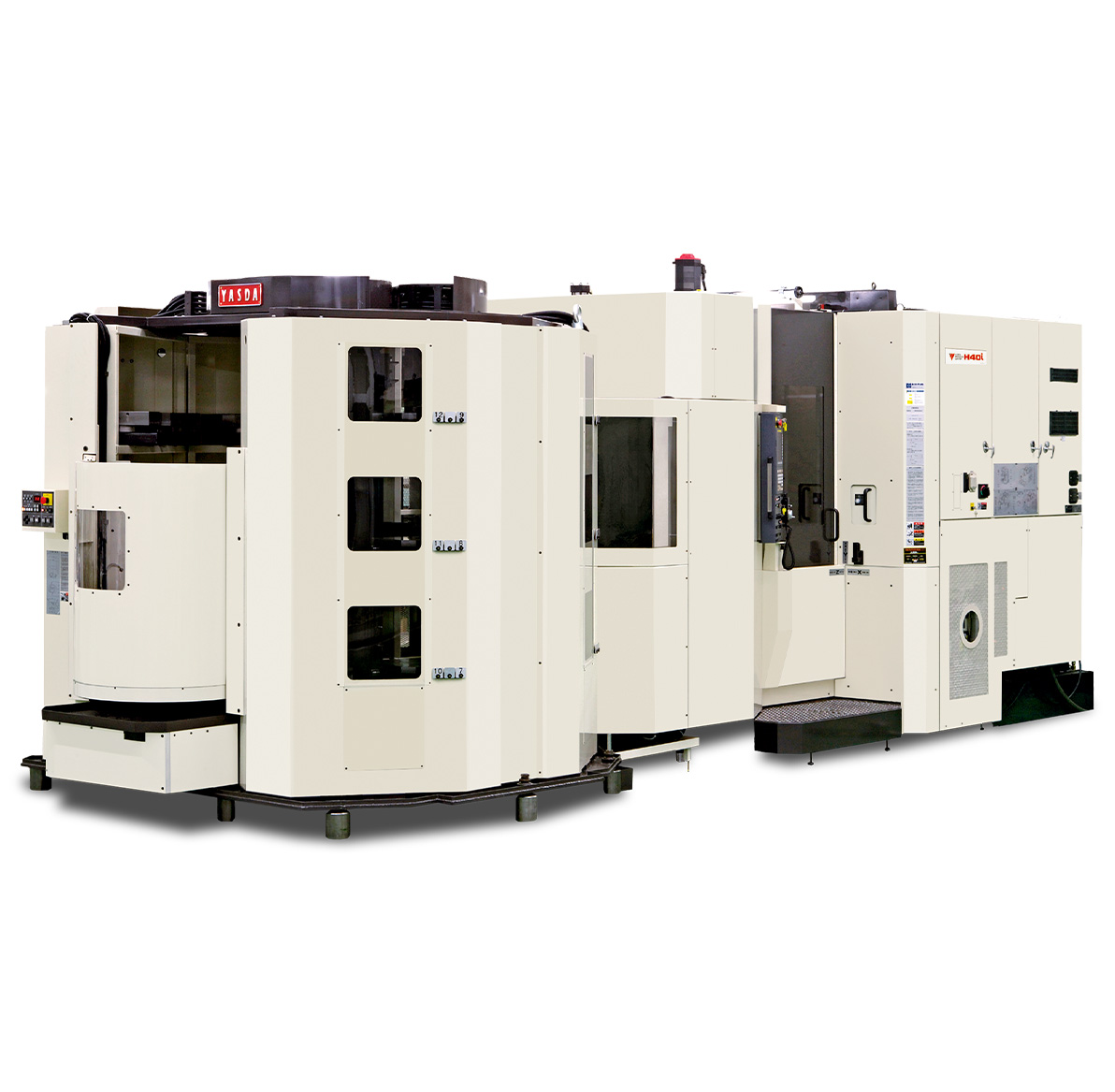

H40i-24PLS H40i-24PLS can store up to 24 pallets on 3 stages on top and bottom, and realizes processing with high cost performance owing to its space saving and unmanned operation for a long period of time.
